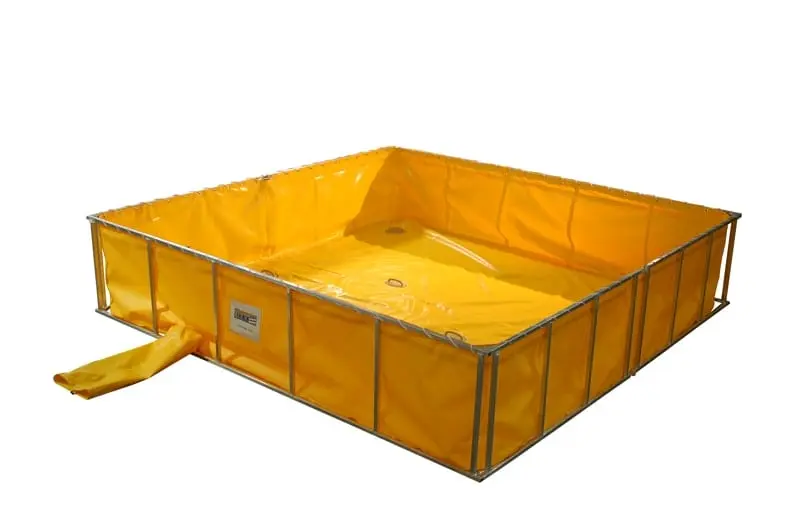

FOLDING TANK STANDARD W/ ALUMINUM FRAME 22oz VINYL W/ 28oz BASE
All frame materials were carefully chosen to give the best strength yet keep the weight to a minimum. Our aluminum frame material is specially designed with radius corners to help protect the liner rope, the liner and the firefighters hands. All Husky® frames are pinch free!
Aluminum Frame
★ 1" x 1" x 1/8" 6061 Square Tube Aluminum With Radius Corners
★ Superior Heavy Duty Laser Cut Hinge
★ Approx. 25% Weight Savings Over Steel
★ Aluminum Mig Welded Construction, Guaranteed!
★ Available In Round Tube Schedule 40 6061-T6 Aluminum
★ Our hinge design allows for aluminum frames to fold down to 7 ½" and
steel frames 7”
| Tank Size | Open | Folded | Alum. Weight |
| ALF-1000 gallon | 8'3" x 8'3" x 29" | 7 1/2" x 8'3" x 29" | 96 lbs. |
| ALF-1500 gallon | 10'3" x 10'3" x 29" | 7 1/2" x 10'3" x 29" | 109 lbs. |
| ALF-2100 gallon | 11'3" x 11'3" x 29" | 7 1/2" x 11'3" x 29" | 124 lbs. |
| ALF-2500 gallon | 12'3" x 12'3" x 29" | 7 1/2" x 12'3" x 29" | 135 lbs. |
| ALF-3000 gallon | 13'3" x 13'3" x 29" | 7 1/2" x 13'3" x 29" | 149 lbs. |
| ALF-3500 gallon | 14'3" x 14'3" x 29" | 7 1/2" x 14'3" x 29" | 167 lbs. |
| ALF-4000 gallon | 15'3" x 15'3" x 29" | 7 1/2" x 15'3" x 29" | 178 lbs. |
| ALF-5000 gallon | 17'3" x 17'3" x 29" | 7 1/2" x 17'3" x 29" | 215 lbs. |
