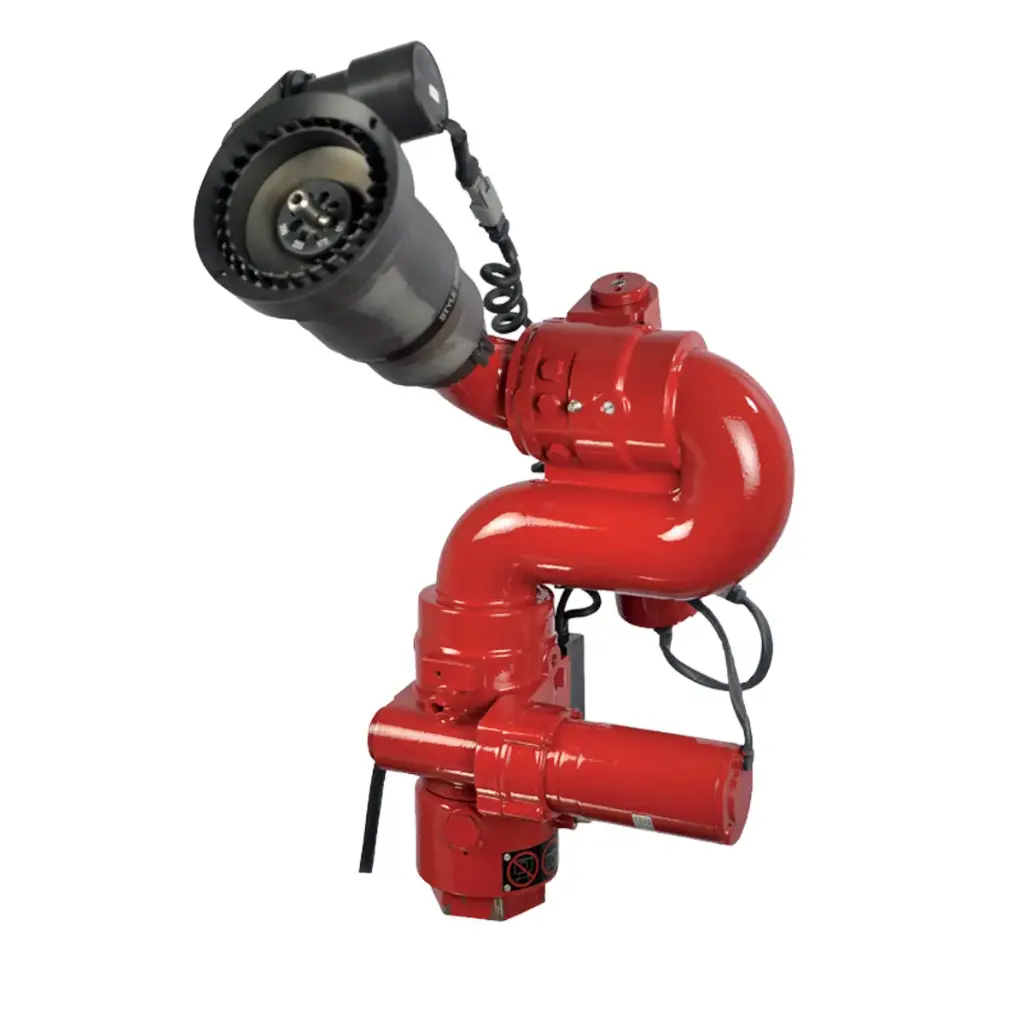

Multi‑Purpose & Forestry Monitor Package

With Harness, Low‑Flow Nozzle & CAN Proportional Joystick

The Multi‑Purpose and Forestry Monitor is Akron Brass’s latest electric monitor, engineered for rugged performance in brush and wildland firefighting. Its compact design, sealed electronics, and smooth joystick control deliver precise stream placement and dependable operation in harsh environments.

Features

• Low‑Flow Adjustable Nozzle Electric fog nozzle with flush settings of 30, 60, 95, and 125 GPM for versatile flow control.

• CAN Proportional Joystick Provides smooth, proportional speed control for accurate stream direction.

• Lightweight Pyrolite® Construction Strong, corrosion‑resistant, and designed to reduce overall weight.

• Fully Sealed Electronics Protects internal components from moisture, dust, and extreme conditions.

• IP67 Waterproof Connectors Locking connectors ensure secure, weather‑resistant electrical connections.

• Plug‑and‑Play Installation Simple setup for quick deployment on firefighting apparatus.

• Wide Rotation Range Up to 320° rotation with stops at ±90° for broad operational coverage.

• Elevation Control 135° elevation range with stops at ‑45° and ‑20° for precise targeting.

• 12V System Compatibility Works with standard 12‑volt vehicle electrical systems.

How It’s Used

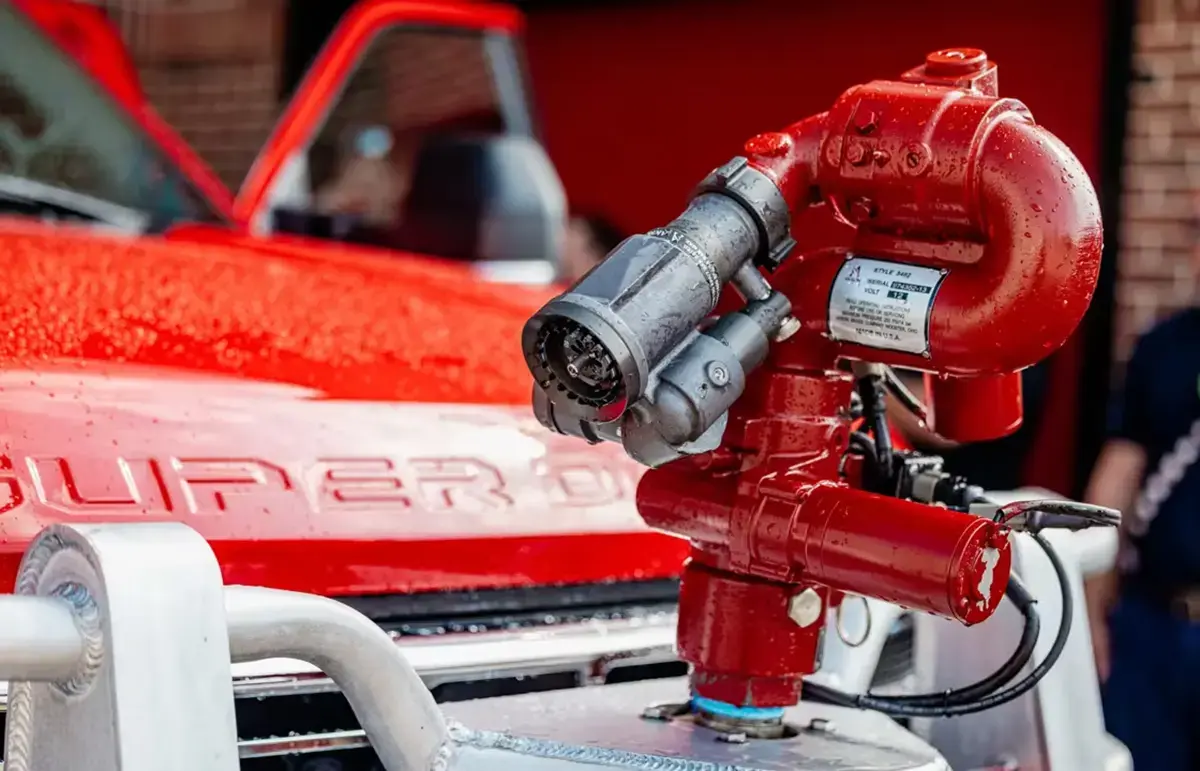

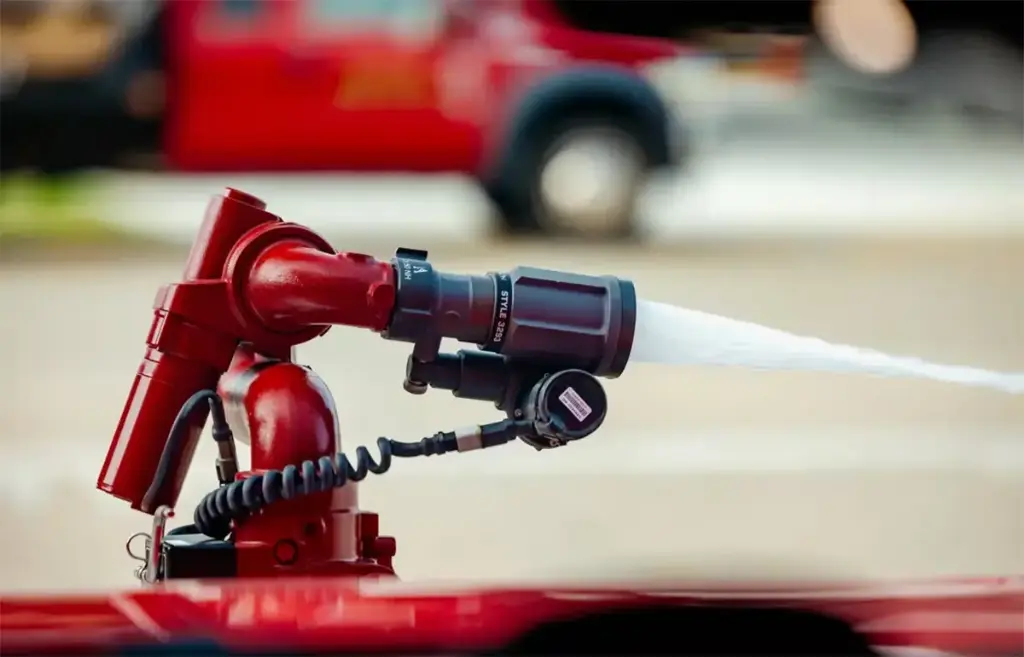

Mounted on firefighting vehicles, the monitor is operated through the CAN proportional joystick. Firefighters can adjust rotation, elevation, and nozzle flow settings in real time, allowing precise water application during wildland and brush fire suppression.

Who Uses It

• Municipal and rural fire departments

• Forestry and land management agencies

• Emergency response teams

These organizations rely on this monitor for dependable wildland fire control.

Maintenance

• Inspect electrical connections regularly for cleanliness and secure fit.

• Check nozzle settings and flush as needed to remove debris.

• Ensure all seals remain intact to maintain waterproof protection.

Storage

• Store in a dry, secure location when not in use.

• Avoid prolonged exposure to extreme temperatures or corrosive environments to protect electronic components.

What’s Included

• Multi‑Purpose & Forestry Monitor

• Harness

• Low‑Flow Adjustable Electric Fog Nozzle

• CAN Proportional Speed Joystick

Specifications

• Flow Rate: 300 GPM (1140 LPM)

• Nozzle Settings: 30 / 60 / 95 / 125 GPM

• Rotation Range: 320° (±90° stops)

• Elevation Range: 135° (‑45° and ‑20° stops)

• Voltage: 12V

• Dimensions: 13‑3/16" H × 11‑9/16" W × 8‑29/32" D

• Inlet: 2"

• Outlet: 1.5"

• Shipping Weight: 25 lbs (monitor only)

• Model: 34621100
